Standardgraph Architectural Templates

Standardgraph Architectural Templates are ideal for architects, interior designers, and students with a variety of scales & symbols to suit individual needs and projects.

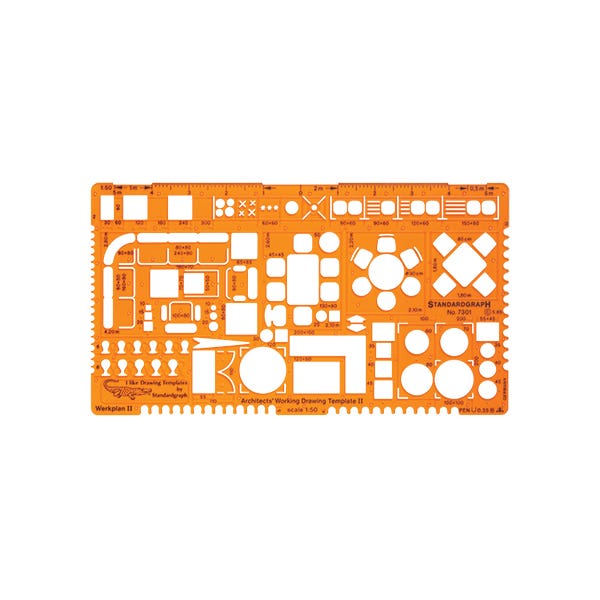

• #7301 which is 225x125mm, scale 1:50 with symbols for layouts of living rooms, bedrooms, dining rooms & kitchen furnishings. Outlines of insulating layers in 6 different sizes.

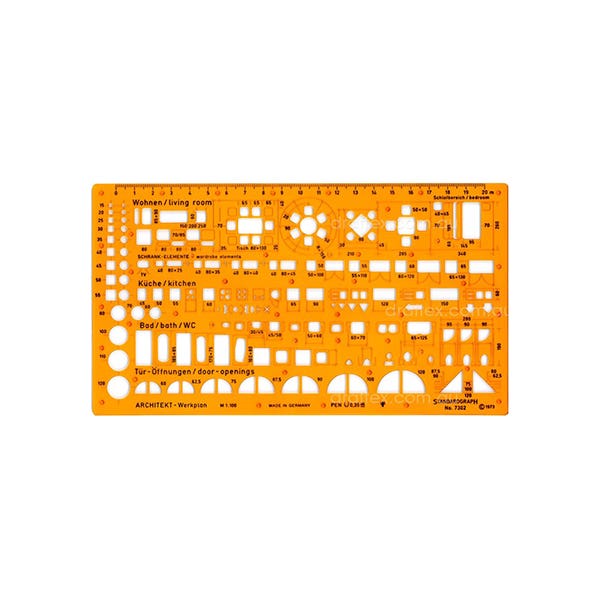

• #7302 is 225x125mm, scale 1:100, with symbols for layouts of living rooms, bedrooms, dining rooms, kitchen and sanitary fittings, aswell as door openings in domestic construction. Level & direction symbols.

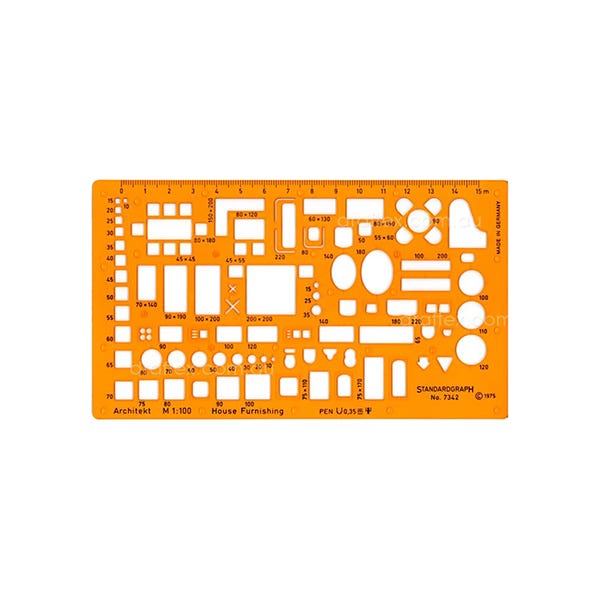

• #7342 is 175x100mm, scale 1:100, with symbols for furnishing layouts of living rooms, bedrooms and kitchens, as well as of sanitary fittings. #7343 is the same symbols, however in 300x150mm, scale 1:50.

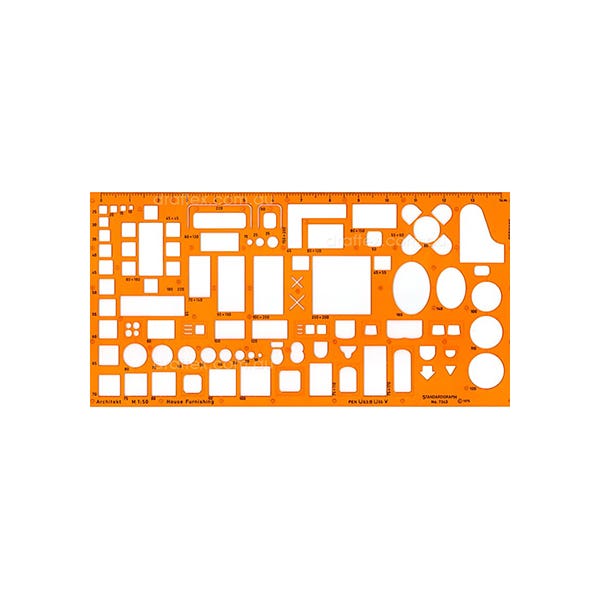

• #7343 is 300 x 150 x 1.2mm.Standardgraphs furniture template includes symbols for room lay-outs in living rooms, bedrooms, kitchens and bathrooms. Scale 1:50.
